Beskrivning
Technical data
| Tilt range | -1 – +48 ° |
| Nominal power input | 1400 W |
| Nominal power input | 1.9 hp |
| Nominal No. of strokes – no load | 3600-6250 1/min |
| Weight | 4,5 kg |
| Weight | 9.9 lbs |
| Cutting depth | 0 – 57 mm |
| Cutting depth | 0 – 2 1/4 in |
| Cutting depth (a) | 0 mm |
| Cutting depth (b) | 57 mm |
| Cutting depth at 45° | 0 – 40,5 mm |
| Universal motor | 230 V / 50 Hz |
| Cutting depth at 45° | 0 – 1 5/8 in |
Product details
The idea of developing a new plunge-cut saw is not new in itself. The novel aspect of this development, however, was the origination of a unique precision product from a set of especially designed machine components.

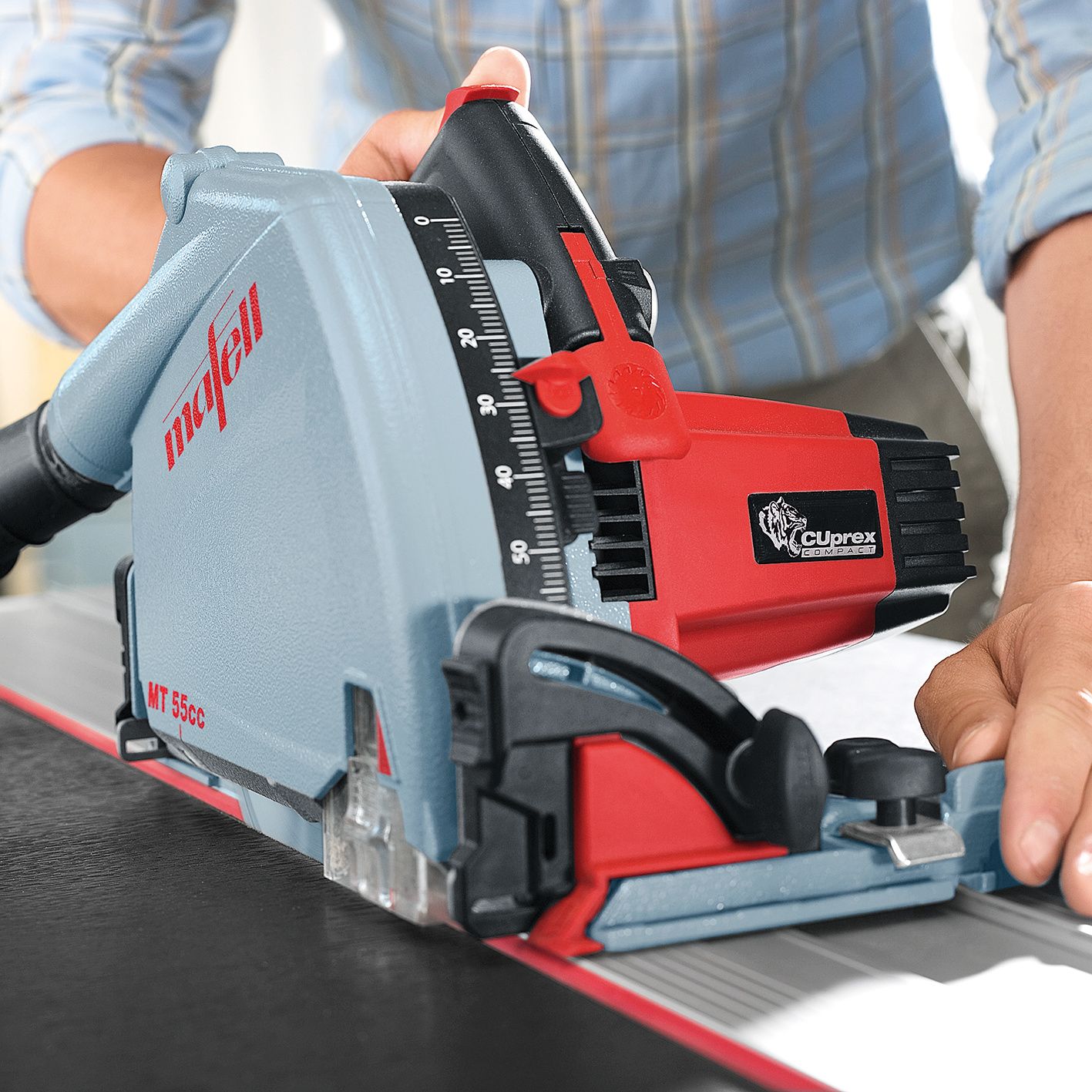

The plunge-cut saw MT 55 cc is a jack of all trades. It can execute plunge, parting, bevel and angled cuts with supreme precision and without any tearing.
The scoring function is quickly activated in a single movement. The MT 55 cc then cuts visible edges as cleanly as a stationary machine, even if the splinter guard is worn.
Continuously variable speed for a variety of materials and sawblades.
The cutting depth range has now been extended to 57 mm (2 1/4 in.). Thanks to the innovative tilting system, the options afforded for bevel cuts are practically unlimited as well.
Applications
- Cross-cutting and rip cuts
- Bevel cuts -1 to +48°
- Plunge cuts
- Compatible materials include solid wood, cement fiberboard, melamine resin panels (Trespa), OSB, gypsum fiberboard, plastics, façade boards and various board materials
Advantages
- Facility for extremely fine adjustment of the cutting depth setting, e.g. when working with a resharpened blade or with Fermacell.
- The closed saw blade cover and the slide bar at the saw-cut ensure a very low dust formation.
- The MT 55 cc is equipped with a new CUprex-Compact motor for significantly elevated speeds and ample power in reserve.

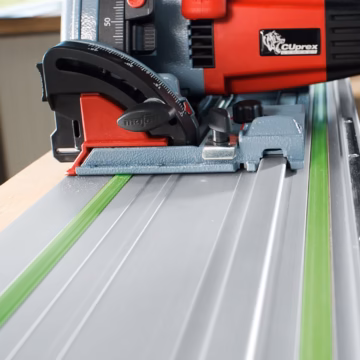

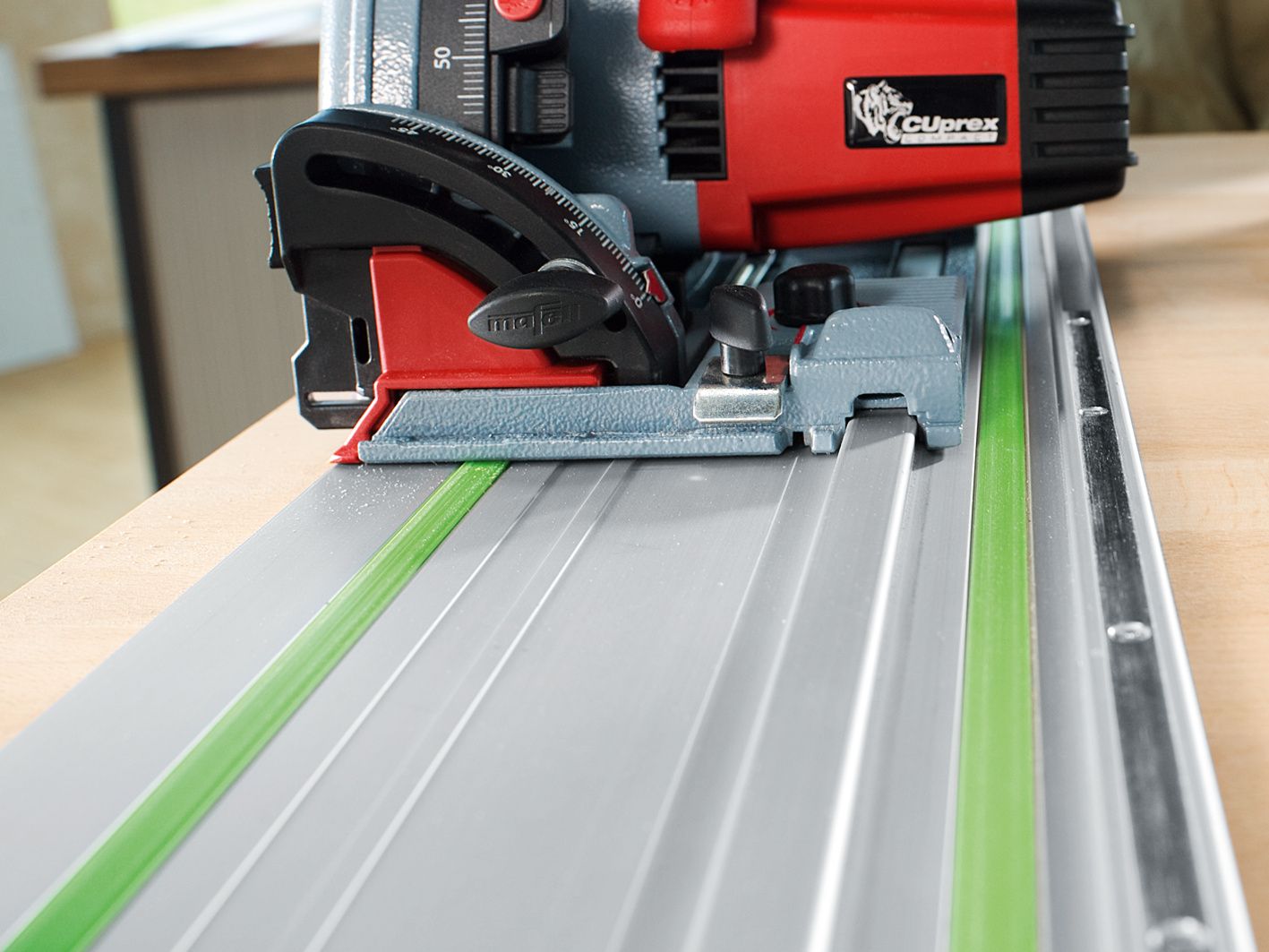

- The cutting depth can be set with millimeter precision. With or without a rail – simply turn the pointer to show the exact cutting depth.
- For bevel cuts, the angle setting is fixed in two locations with half a turn of a single locking screw.
